A dosing pump, often referred to as a metering pump, is a type of positive displacement pump designed to dispense precise amounts of a chemical or other substance into a particular process. These pumps typically introduce the substance into fluid streams, such as pipes or tanks.
The mechanism by which a dosing pump operates generally involves drawing a set quantity of the substance into a chamber, then discharging this measured amount into the target pipe or vessel. While prominently found in water treatment and food processing sectors, dosing pumps also play essential roles in chemical production, agriculture, medicine, and various manufacturing processes.
Understanding the Operation of a Dosing Pump
While the specifics of a dosing pump’s operation can differ based on its model and manufacturer, the core principle remains the same: it precisely dispenses a set amount of substance to a designated location. Despite their intricate functions, dosing pumps are usually compact, driven either by a modest motor or a pneumatic actuator.
To maintain consistent flow rates, dosing pumps are equipped with control systems. These can either be externally connected or integrated within the pump, featuring on-off functionalities. Some advanced models even come with alarm systems, which alert users when the substance level is critically low or depleted.
Dosing pump components
Key Components of a Dosing Pump:
- Storage Chamber: This compartment houses the chemical or substance that will be administered.
- Foot Valve: A unique valve affixed to the suction line and placed within the storage chamber. Its primary purpose is to maintain the pump’s prime. For stability, the foot valve should have sufficient weight to stay anchored at the chamber’s base. An added feature in some valves is a suspension indicator, which triggers an alarm once the substance level becomes critically low or runs out.
- Pump: The material and size of this component can vary. While many are constructed using chemical-resistant plastics such as PVC or polyethylene, some are crafted from steel. Each pump is designed with two distinct ends – one for suction and the other for injection – with varying structural configurations based on the model.
- Injection Line: Typically fabricated from PVC or high-density polyethylene. However, in scenarios that involve high pressures or extremely hot substances like steam, steel is preferred. This line can house multiple components such as discharge valves, pressure regulators, and other valves for optimal function.
- Injector: This component is central to the injection process. Equipped with a one-way valve, it ensures that after the substance has been moved by the pump, it can surmount the pressure at the injection site, facilitating precise injection. Additionally, this valve prevents backflow, safeguarding the pump from potential damage. The nozzle at the injector’s end ensures the injected substance blends efficiently with the target material.
- Control System: Crucial for the precision of the dosing pump. Depending on the intricacy of the operation, it could range from a basic flow switch to a sophisticated control mechanism with multiple sensors (e.g., for pH, chlorine levels) that modulate the dosing volume accordingly.
Exploring Varieties of Dosing Pumps
Within the realm of dosing pumps, a spectrum of four distinctive types emerges, each distinguished by its efficacy, pumping mechanism, and application in terms of location and pressure. The quartet of these pump categories are as follows:
Diaphragm with Fixed Injection
Within this category, the pumping process involves a piston, diaphragm, and valves positioned on the inlet and outlet sides. The pump chamber orchestrates the filling and evacuation actions. The injection substance is drawn into the chamber by retracting the piston and subsequently dispensed at a predetermined pace, often corresponding to a percentage of the maximum flow rate.
Renowned for their precision, these pumps consistently administer injections at fixed flow rates spanning from 6 to 250 liters per hour. Through meticulous control, the potential to vary dosages comes to fruition. Notable exemplars encompass the likes of Grundfos DDA and DDE.
Diaphragm with Pulsed Injection
While adhering to a diaphragmatic mechanism, this class diverges from a steady injection tempo. Governed by a solenoid screw, these pumps operate in a pulsatile fashion, intermittently drawing in and then dispensing the substance. The regulation of flow rate hinges upon the temporal gaps between pulses. Mechanical and electrical iterations of these pumps exist, characterized by their simplicity and affordability. However, it’s worth noting that this category is waning in relevance today.
Lobe Dosing Pumps
Within this variant, a set of lobes orchestrates the intake of the injection substance into the pump chamber before expelling it toward its destination. Given the imprecise volume between the lobes, these pumps lack the precision synonymous with diaphragm-based counterparts.
Furthermore, these pumps are prone to notable wear and tear. They find utility when dealing with adhesive or viscous substances, which mitigate the wear factor. However, adapting these pumps to accommodate low flow rates poses challenges.

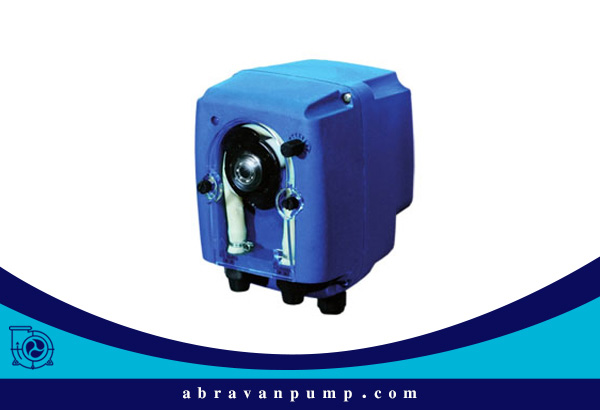

Peristaltic Dosing Pumps
In the realm of dosing pumps, the peristaltic variant stands distinct with its precise and targeted injection methodology. This intricate process is executed through the utilization of a flexible tube, which serves as the conduit for the injection material. Within this setup, the tube adopts a curved configuration resembling a semi-circle, with a diminutive roller affixed to a mechanical arm that glides over its surface. This rhythmic movement propels a specific measure of the injection substance ahead, affecting its transfer to the designated injection zone.
Notably, peristaltic pumps find a stronghold in medical applications due to their facile sterilization process and the convenience of disassembling and replacing pump components. However, an inherent drawback surfaces in the form of susceptibility to wear and tear. Moreover, owing to the tubular composition of this pump, its utility is confined to applications that don’t involve high-pressure injections.
Installation of Dosing Pumps
Once a dosing pump is primed, signifying the expulsion of all air from the tubes and injector, the subsequent step involves configuring the desired dosage. This entails either manual input or synchronization with an external signal. In scenarios where the dosing pump responds to an internal signal, a calibration procedure ensues, aligning the pump’s dosage with the targeted quantity. With these preparations in place, the dosing pump commences its operation, persisting until a cessation signal is received.
